Features:

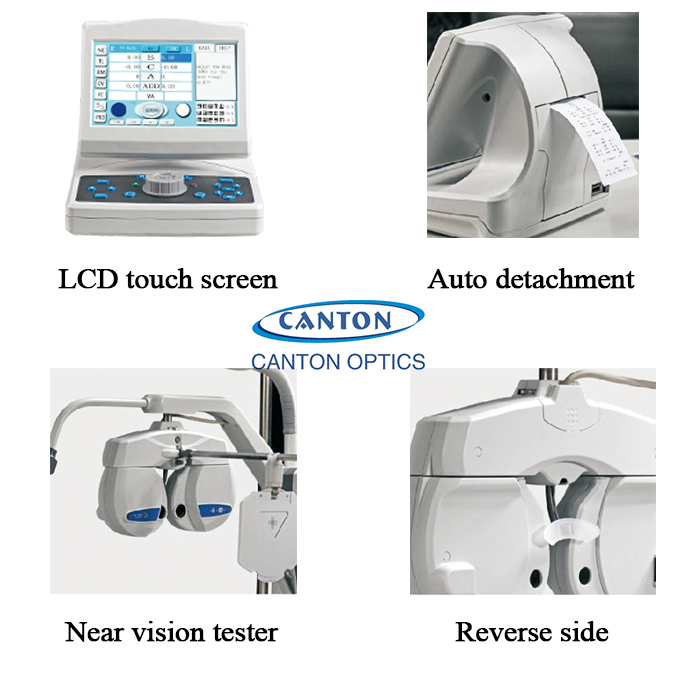

1. 8.0 inch color LCD touch screen
2. Stylish and compact design
3. Auto detachment printer
4. Independent PD adjustment
5. Built-in LED for near vision illumination

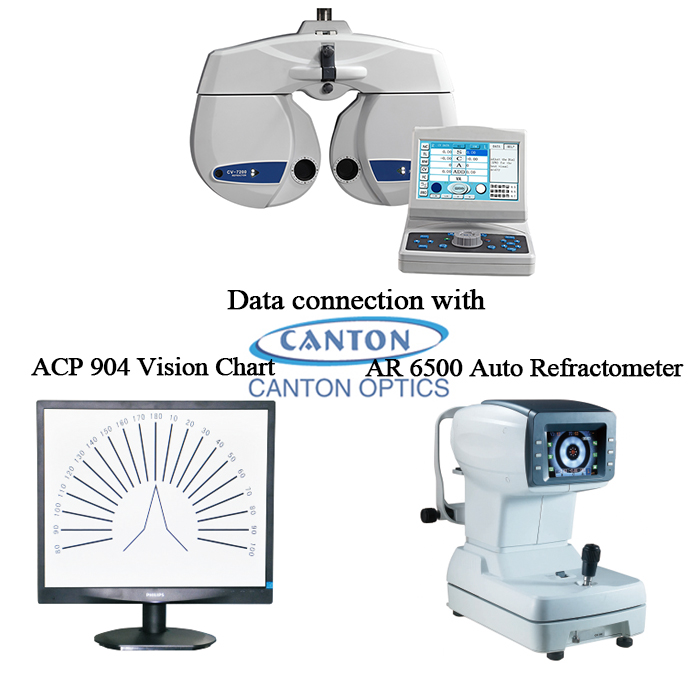

6. Data transmission with auto refractometer and auto projector
Specifications:
Sphere
|
-19.00D~+16.75D 0.25D step
|
Cylinder
|
-8.75D~+8.75D 0.25D step
|
Pupil Distance
|
Distance range: 48~80mm
|
Rotary Prism
|
0~20△ 0.1/0.5/ steps
|
Cross Cylinder Lens
|
±0.25D
|
Retinoscope
|
+1.5D(67cm), +2.00D(50cm)
|
Auxiliary Lens
|
PH, Binoculus(¢=1.0mm)
|
RMV/RMH
|
RL(Right eye), GL(Left eye)
|
Polaroid(Right eye 135º/45º, Left eye 45º/135º)
|
Prism(Right 3△BU/6△BU, Left 3△BD/10BI)
|
Cross Cylinder Lens(±0.50D Axis=90 º)
|
PD Lens
|
Phoroptor Size
|
365*280*110mm 3.8kg
|
Keynoard Size
|
230*195*190mm
|
Power Box
|
236*126*115mm 2kg
|
Power Supply
|
AC 220V 50HZ AC 110V 60HZ 90W
|
