Features:
1. The optical lens are made of glass imported from Germany.
2. All the lens are multi-coated, mildew proof and anti-reflection.
3. Two step magnifications,10X,16X for choice
Specifications:
|
Microscope type
|
Parallel included angle type
|
|
Magnification
|
Three-step magnifications
|
|
Eye piece
|
10X
|
|
Total magnification and field of view(MM)
|
10×(Φ18)、16×(Φ14.5)
|
|
Range of pupil distance(MM)
|
55~82
|
|
Adjustment of diopter
|
±6D
|
|
Slit width(MM)
|
0~9 adjustable
|
|
Silt height(MM)
|
1~8 adjustable
|
|
Silt angle
|
0~180°
|
|
Silt inclination
|
5°、10°、15°、20°
|
|
Light spot diameter(MM)
|
Φ14、Φ10、Φ5、Φ2、Φ1、Φ0.2
|
|
Filter
|
Heat absorption, grey, Redfree, cobalt blue
|
|
Illumination bulb
|
12V/30W halogen bulb
|
|
Voltage/frequency
|
AC220V±10%/60HZ±1HZ, AC110V±10%/50HZ±1HZ
|
|
Power
|
58VA
|
|
Electrical safety standard
|
Conform to Standard IEC 601-1 Class 1 Type B
|
|
Whole packing volume
|
0.30M3
|
|
Carton number
|
2
|
|
Total weight
|
51KGS
|
Accessories:

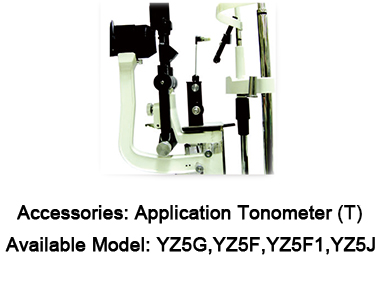

Applanation Tonometer (R type and T type), Measuring Eyepiece.

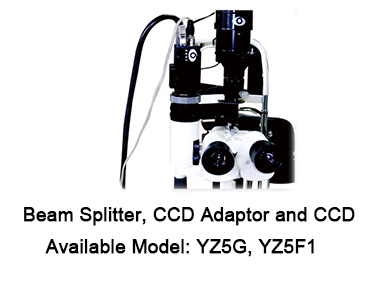

Pictures of Slit Lamp Microscope Accessories
